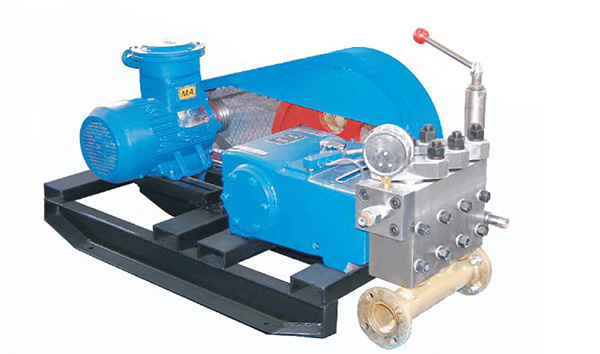

3P40(3P00-II)型三柱塞高压泵
3P40(3P00-II)型三柱塞高压泵性能参数表 柱塞行程：40mm 泵推力：1000kg
| 柱塞直径(mm) | 60 | 55 | 50 | 43 | 35 | 30 | 28 | 24 | 22 | 18 | 16 | 15 | |
| 工作压力(MPa) | 2 | 4 | 6 | 8 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | |
| 转速 (n/min) | 流量 (L/min) m³/h 功率 (kW) | ||||||||||||
| 90 | L/min | 30.52 | 25.65 | 21.20 | 15.68 | 10.39 | 7.63 | 6.65 | 4.88 | 4.10 | 2.75 | 2.17 | 1.91 |
| m³/h | 1.83 | 1.54 | 1.27 | 0.94 | 0.62 | 0.46 | 0.40 | 0.29 | 0.25 | 0.16 | 0.13 | 0.11 | |
| kW | 1.17 | 1.97 | 2.45 | 2.41 | 2.40 | 2.35 | 2.56 | 2.35 | 2.37 | 2.11 | 2.09 | 2.20 | |
| 120 | L/min | 40.69 | 34.19 | 28.26 | 20.90 | 13.85 | 10.17 | 8.86 | 6.51 | 5.47 | 3.66 | 2.89 | 2.54 |
| m7h | 2.44 | 2.05 | 1.70 | 1.25 | 0.83 | 0.61 | 0.53 | 0.39 | 0.33 | 0.22 | 0.17 | 0.15 | |
| kW | 1.57 | 2.63 | 3.26 | 3.22 | 3.20 | 3.13 | 3.41 | 3.13 | 3.16 | 2.82 | 2.78 | 2.93 | |
| 140 | L/min | 47.48 | 39.89 | 32.97 | 24.38 | 16.16 | 11.87 | 10.34 | 7.60 | 6.38 | 4.27 | 3.38 | 2.97 |
| m7h | 2.85 | 2.39 | 1.98 | 1.46 | 0.97 | 0.71 | 0.62 | 0.46 | 0.38 | 0.26 | 0.20 | 0.18 | |
| kW | 1.83 | 3.07 | 3.80 | 3.75 | 3.73 | 3.65 | 3.98 | 3.65 | 3.68 | 3.29 | 3.25 | 3.42 | |
| 160 | L/min | 54.26 | 45.59 | 37.68 | 27.87 | 18.46 | 13.56 | 11.82 | 8.68 | 7.29 | 4.88 | 3.86 | 3.39 |
| ma/h | 3.26 | 2.74 | 2.26 | 1.67 | 1.11 | 0.81 | 0.71 | 0.52 | 0.44 | 0.29 | 0.23 | 0.20 | |
| kW | 2.09 | 3.51 | 4.35 | 4.29 | 4.26 | 4.17 | 4.54 | 4.17 | 4.21 | 3.76 | 3.71 | 3.91 | |
| 220 | L/min | 74.61 | 62.69 | 51.81 | 38.32 | 25.39 | 18.65 | 16.25 | 11.94 | 10.03 | 6.71 | 5.31 | 4.66 |
| m³/h | 4.48 | 3.76 | 3.11 | 2.30 | 1.52 | 1.12 | 0.97 | 0.72 | 0.60 | 0.40 | 0.32 | 0.28 | |
| kW | 2.87 | 4.82 | 5.98 | 5.90 | 5.86 | 5.74 | 6.25 | 5.74 | 5.79 | 5.17 | 5.10 | 5.38 | |
| 300 | L/min | 101.74 | 85.49 | 70.65 | 52.25 | 34.62 | 25.43 | 22.16 | 16.28 | 13.68 | 9.16 | 7.23 | 6.36 |
| ma/h | 6.10 | 5.13 | 4.24 | 3.14 | 2.08 | 1.53 | 1.33 | 0.98 | 0.82 | 0.55 | 0.43 | 0.38 | |
| kW | 3.91 | 6.58 | 8.15 | 8.04 | 7.99 | 7.83 | 8.52 | 7.83 | 7.89 | 7.04 | 6.96 | 7.34 | |
| 350 | L/min | 118.69 | 99.73 | 82.43 | 60.96 | 40.39 | 29.67 | 28.85 | 18.99 | 15.96 | 10.68 | 8.44 | 7.42 |
| ma/h | 7.12 | 5.98 | 4.95 | 3.66 | 2.42 | 1.78 | 1.55 | 1.14 | 0.96 | 0.64 | 0.51 | 0.45 | |
| kW | 4.57 | 7.67 | 9.51 | 9.38 | 9.32 | 9.13 | 9.94 | 9.13 | 9.21 | 8.22 | 8.12 | 8.56 | |
| 400 | L/min | 135.65 | 113.98 | 94.20 | 69.67 | 46.16 | 33.91 | 29.54 | 21.70 | 18.24 | 12.21 | 9.65 | 8.48 |
| m³/h | 8.14 | 6.84 | 5.65 | 4.18 | 2.77 | 2.03 | 1.77 | 1.30 | 1.09 | 0.73 | 0.58 | 0.51 | |
| kW | 5.22 | 8.77 | 10.87 | 10.72 | 10.65 | 10.43 | 11.36 | 10.43 | 10.52 | 9.39 | 9.28 | 9.78 | |
| 450 | L/min | 152.60 | 128.23 | 105.98 | 78.38 | 51.93 | 38.15 | 33.23 | 24.42 | 20.52 | 13.73 | 10.85 | 9.54 |
| m³/h | 9.16 | 7.69 | 6.36 | 4.70 | 3.12 | 2.29 | 1.99 | 1.46 | 1.23 | 0.82 | 0.65 | 0.57 | |
| kW | 5.87 | 9.86 | 12.23 | 12.06 | 11.98 | 11.74 | 12.78 | 11.74 | 11.84 | 10.56 | 10.43 | 11.01 | |
注意事项：
1、当使用环境为24小时连续运转时(如：注水泵、流程泵等)，泵转速应低于250r/min。
2、当使用环境为间断运转时(如：清洗泵、试压泵等)，泵转速可高一点。
3、当输送介质液态气体时(如：二氧化碳泵等)，泵转速应不高于110r/min。
4、上表所提供的流量为理念流量，实际流量一般为理论流量的92%。
