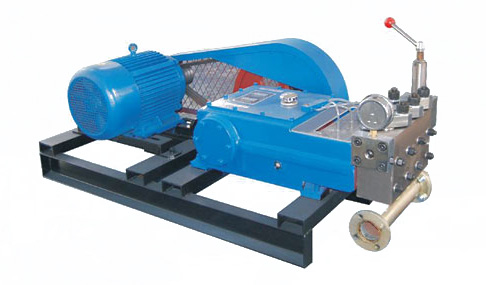

3P55(3P10)型三柱塞高压泵
3P55(3P10)型三柱塞高压泵性能参数表 柱塞行程：55mm 泵推力：1500kg
| 柱塞直径(mrn) | 55 | 50 | 48 | 45 | 40 | 35 | 32 | 28 | 25 | 22 | 20 | 18 | 16 | 14 | |
| 工作压力(MPa) | 3.5 | 4 | 4.5 | 5 | 6.3 | 8.5 | 10 | 13 | 16 | 21 | 25 | 31.5 | 40 | 50 | |
| 转速 (n/min) | 流量(L/min) m³/h 功率 (kW) | ||||||||||||||
| 130 | L/min | 47.9 | 39.5 | 36.7 | 32 | 25.4 | 19.7 | 16 | 12 | 9.9 | 7.5 | 6.3 | 5 | ||
| m³/h | 2.87 | 2.37 | 2.2 | 1.92 | 1.52 | 1.18 | 0.96 | 0.72 | 0.59 | 0.45 | 0.38 | 0.3 | |||
| kW | 3.25 | 3.05 | 3.17 | 3.1 | 3.08 | 3.18 | 3.13 | 3.12 | 3.06 | 3.1 | 3.06 | 3.17 | |||
| 175 | L/min | 64 | 53.6 | 48.9 | 43 | 33.8 | 26.3 | 21.6 | 16.9 | 13.2 | 10.3 | 8.5 | 6.8 | 5.4 | 4.1 |
| m³/h | 3.84 | 3.22 | 2.93 | 2.58 | 2.03 | 1.58 | 1.29 | 1.01 | 0.79 | 0.62 | 0.51 | 0.41 | 0.32 | 0.25 | |
| kW | 4.3 | 4.14 | 4.26 | 4.16 | 4.15 | 4.28 | 4.21 | 4.2 | 4.11 | 4.18 | 4.11 | 4.26 | 4.21 | 4.03 | |
| 200 | L/min | 73.3 | 61.1 | 56.4 | 48.9 | 38.5 | 30.1 | 25.4 | 18.8 | 15 | 11.7 | 9.6 | 7.8 | 6.1 | 4.7 |
| m³/h | 4.4 | 3.67 | 3.38 | 2.93 | 2.31 | 1.8 | 1.52 | 1.13 | 0.9 | 0.7 | 0.57 | 0.47 | 0.37 | 0.28 | |
| kW | 4.95 | 4.71 | 4.88 | 4.75 | 4.73 | 4.9 | 4.82 | 4.8 | 4.7 | 4.78 | 4.7 | 4.88 | 4.82 | 4.61 | |
| 250 | L/min | 91.6 | 75.7 | 70.1 | 61.7 | 48.6 | 37.4 | 30.9 | 23.4 | 18.7 | 14.4 | 12.1 | 9.76 | 7.67 | 5.79 |
| m³/h | 5.5 | 4.9 | 4.2 | 3.7 | 2.92 | 2.24 | 1.85 | 1.4 | 1.12 | 0.86 | 0.72 | 0.58 | 0.46 | 0.35 | |
| kW | 6.2 | 5.88 | 6.1 | 5.95 | 5.92 | 6.12 | 6.02 | 6 | 5.88 | 5.98 | 5.88 | 6.1 | 6.02 | 5.76 | |
| 280 | L/min | 102 | 83.7 | 78 | 67.9 | 54 | 41 | 34.4 | 26 | 21 | 16.3 | 13.4 | 10.8 | 8.6 | 6.53 |
| m³/h | 6.13 | 5.02 | 4.68 | 4.07 | 3.23 | 2.45 | 2.06 | 1.56 | 1.25 | 0.976 | 0.805 | 0.65 | 0.51 | 0.392 | |
| kW | 6.97 | 6.53 | 6.82 | 6.65 | 6.63 | 6.85 | 6.74 | 6.7 | 6.58 | 6.7 | 6.58 | 6.82 | 6.74 | 6.45 | |
| 315 | L/min | 114 | 95 | 87 | 77.2 | 60.4 | 46.5 | 39 | 29.7 | 23.6 | 18.5 | 15 | 12.14 | 9.56 | 7.28 |
| m³/h | 6.86 | 5.7 | 5.24 | 4.63 | 3.62 | 2.79 | 2.34 | 1.78 | 1.41 | 1.11 | 0.904 | 0.73 | 0.574 | 0.43 | |
| kW | 7.81 | 7.4 | 7.68 | 7.49 | 7.5 | 7.7 | 7.6 | 7.6 | 7.4 | 7.5 | 7.4 | 7.7 | 7.6 | 7.3 | |
| 360 | L/min | 131 | 108 | 99.5 | 87.4 | 69.5 | 53 | 44.6 | 34.2 | 26.8 | 20.8 | 17.2 | 13.8 | 10.9 | 8.3 |
| m³/h | 7.87 | 6.47 | 5.97 | 5.24 | 4.17 | 3.18 | 2.67 | 2.05 | 1.61 | 1.24 | 1.03 | 0.82 | 0.66 | 0.49 | |
| kW | 8.93 | 8.42 | 8.77 | 8.56 | 8.5 | 8.8 | 8.7 | 8.7 | 8.5 | 8.6 | 8.5 | 8.8 | 8.7 | 8.3 | |
| 400 | L/min | 144 | 119 | 109 | 97.6 | 76.3 | 3.53 | 48.7 | 37.7 | 29.3 | 22.9 | 18.9 | 15.4 | 12 | 9.14 |
| m³/h | 8.64 | 7.17 | 6.54 | 5.86 | 4.58 | 58.8 | 2.92 | 2.26 | 1.75 | 1.37 | 1.13 | 0.92 | 0.72 | 0.548 | |
| kW | 9.92 | 9.36 | 9.75 | 9.51 | 9.5 | 3.53 | 9.6 | 9.6 | 9.4 | 9.6 | 9.4 | 9.8 | 9.6 | 9.2 | |
| 445 | L/min | 161 | 132 | 122 | 107 | 84.5 | 65.3 | 54 | 41.1 | 33 | 25.6 | 21 | 17 | 13.3 | 10.1 |
| m³/h | 9.66 | 7.92 | 7.32 | 6.42 | 5.07 | 9.8 | 3.24 | 2.47 | 1.98 | 1.53 | 1.26 | 1.02 | 0.8 | 0.606 | |
| kW | 11.1 | 10.4 | 10.8 | 10.6 | 10.2 | 10.9 | 10.7 | 10.8 | 10.4 | 10.6 | 10.4 | 1.0.8 | 10.7 | 10.3 | |
| 500 | L/min | 135 | 120 | 94 | 72 | 60 | 46.4 | 36.8 | 28.2 | 23.6 | 19 | 14.9 | 11.3 | ||
| m³/h | 8.1 | 7.2 | 5.64 | 4.32 | 3.6 | 2.78 | 2.21 | 1.69 | 1.42 | 1.14 | 0.89 | 0.678 | |||
| kW | 12.2 | 11.9 | 11.5 | 12.2 | 12 | 12.1 | 11.8 | 12 | 11.8 | 1.22 | 12 | 11.5 | |||
| 555 | L/min | 104 | 80 | 67 | 50.7 | 40.7 | 31.6 | 26.1 | 20.9 | 1.00 | 12.5 | ||||
| m³/h | 6.24 | 4.8 | 4 | 3.04 | 2.44 | 1.89 | 1.57 | 1.25 | 16.6 | 0.75 | |||||
| kW | 13.1 | 13.6 | 13.4 | 13.5 | 13.1 | 13.3 | 13.1 | 13.5 | 13.4 | 12.8 | |||||
注意事项：
1、 当使用环境为24小时连续运转时(如：注水泵、流程泵等)，泵转速应低于250r/min。
2、 当使用环境为间断运转时(如：清洗泵、试压泵等)，泵转速可高一点。
3、 当输送介质液态气体时(如：二氧化碳泵等)，泵转速应不高于110r/min.。
4、 上表所提供的流量为理念流量，实际流量一般为理论流量的92%。
