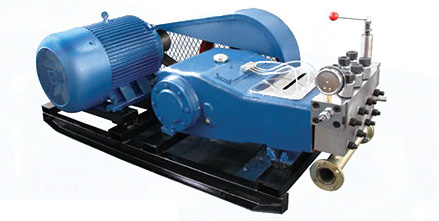

3P80（3P20）型三柱塞高压泵
3P80（3P20）型三柱塞高压泵性能参数表 柱塞行程：80mm 泵推力：3000kg
| 柱塞直径 (mm) | 62 | 60 | 54 | 50 | 48 | 45 | 42 | 38 | 36 | 34 | 32 | 30 | 27 | 24 | |
| 工作压力(MPa) | 9 | 10 | 12.5 | 14 | 16 | 18 | 20 | 25 | 28 | 31.5 | 35 | 40 | SO | 60 | |
| 转速 (n/min) | 流量(L/min) m³/h 功率 (kW) | ||||||||||||||
| 141 | L/min | 96 | 90 | 73 | 61 | 57 | 50 | 43 | 35 | 32 | 28 | 25 | 22 | 17 | 14 |
| m³/h | 5.7 | 5.4 | 4.3 | 3.7 | 3.4 | 3 | 2.6 | 2.1 | 1.9 | 1.7 | 1.5 | 1.3 | 1 | 0.8 | |
| kW | 15.6 | 15.6 | 16.5 | 15.7 | 16.5 | 16.3 | 15.8 | 16.2 | 15.7 | 16 | 15.9 | 16 | 16 | 15 | |
| 159 | L/min | 108 | 100 | 82 | 69 | 64 | 56 | 49 | 40 | 36 | 32 | 28 | 25 | 20 | 15 |
| m³/h | 6.5 | 6 | 4.9 | 4.1 | 3.8 | 3.3 | 2.9 | 2.4 | 2.1 | 1.9 | 1.7 | 1.5 | 1.2 | 0.93 | |
| kW | 17.6 | 18 | 18.6 | 17.7 | 18.6 | 18.4 | 17.8 | 18.2 | 18.3 | 18.2 | 17.9 | 18 | 18 | 16.9 | |
| 179 | L/min | 122 | 114 | 92 | 78 | 72 | 63 | 55 | 45 | 40 | 36 | 32 | 28 | 22 | 17 |
| m³/h | 7.3 | 6.8 | 5.5 | 4.7 | 4.3 | 3.8 | 3.3 | 2.7 | 2.4 | 2.1 | 1.9 | 1.6 | 1.3 | 1 | |
| kW | 19.9 | 20.7 | 21 | 20 | 21 | 20.7 | 20 | 20.5 | 20.6 | 20.5 | 20 | 20.2 | 20.3 | 19 | |
| 200 | L/min | 136 | 127 | 103 | 87 | 81 | 71 | 62 | 50 | 45 | 40 | 35 | 31 | 25 | 19 |
| m³/h | 8.1 | 7.6 | 6.2 | 5.2 | 4.8 | 4.2 | 3.7 | 3 | 2.7 | 2.4 | 2.1 | 1.8 | 1.5 | 1.5 | |
| kW | 22.2 | 23 | 23.4 | 22.2 | 23.4 | 23.2 | 22.4 | 23 | 23 | 23 | 22.5 | 22.6 | 22.7 | 21.3 | |
| 222 | L/min | 151 | 141 | 114 | 97 | 89 | 78 | 68 | 56 | 50 | 44 | 39 | 34 | 28 | 21 |
| m³/h | 9 | 8.5 | 6.8 | 5.8 | 5.3 | 4.7 | 4.1 | 3.3 | 3 | 2.6 | 2.3 | 2 | 1.6 | 1.3 | |
| kW | 24.7 | 25.7 | 26 | 24.7 | 26 | 25.7 | 25 | 25.4 | 25.6 | 25.4 | 25 | 25 | 25 | 23.6 | |
| 250 | L/min | 170 | 159 | 129 | 109 | 100 | 89 | 77 | 63 | 57 | 50 | 44 | 39 | 31 | 24 |
| m³/h | 10.2 | 9.5 | 7.7 | 6.5 | 6 | 5.3 | 4.6 | 3.8 | 3.4 | 3 | 2.6 | 2.3 | 1.8 | 1.5 | |
| kW | 28 | 28.8 | 29 | 28 | 29 | 29 | 28 | 29 | 29 | 28.6 | 28.2 | 28.3 | 28.3 | 26.6 | |
| 282 | L/min | 192 | 180 | 145 | 123 | 114 | 100 | 87 | 71 | 64 | 56 | 50 | 44 | 35 | 27 |
| m³/h | 11.5 | 10.7 | 8.7 | 7.4 | 6.8 | 6 | 5.2 | 4.2 | 3.8 | 3.4 | 3 | 2.6 | 2.1 | 1.6 | |
| kW | 31.3 | 32.6 | 33 | 31.4 | 33 | 32.6 | 31.6 | 32.3 | 32.5 | 32.3 | 32 | 32 | 32 | 30 | |
| 317 | L/min | 216 | 202 | 164 | 139 | 128 | 112 | 98 | 80 | 72 | 63 | 56 | 49 | 39 | 31 |
| m³/h | 12.9 | 12.1 | 9.8 | 8.3 | 7.6 | 6.7 | 5.8 | 4.8 | 4.3 | 3.8 | 3.3 | 2.9 | 2.3 | 1.86 | |
| kW | 35.2 | 36.6 | 37 | 35.3 | 37 | 36.7 | 35.5 | 36.4 | 36.6 | 36.3 | 35.7 | 35.9 | 35.9 | 33.7 | |
| 357 | L/min | 243 | 227 | 184 | 156 | 144 | 126 | 110 | 90 | 81 | 71 | 63 | 55 | 44 | 35 |
| m³/h | 14.5 | 13.6 | 11 | 9.3 | 8.6 | 7.6 | 6.6 | 5.4 | 4,8 | 4.3 | 3.8 | 3.3 | 2.6 | 2.1 | |
| kW | 39.7 | 41.3 | 41.8 | 39.7 | 41.8 | 41.4 | 40 | 41 | 41.2 | 41 | 40.2 | 40.4 | 40.5 | 38 | |
| 400 | L/min | 272 | 255 | 206 | 175 | 161 | 142 | 123 | 100 | 91 | 80 | 71 | 62 | 50 | 39 |
| m³/h | 16.3 | 15.3 | 12.3 | 10.5 | 9.7 | 8.5 | 7.4 | 6 | 5.4 | 4.8 | 4.2 | 3.7 | 3 | 2.3 | |
| kW | 44.5 | 46.3 | 46.8 | 44.5 | 46.9 | 46.3 | 44.8 | 45.9 | 46 | 45.8 | 45 | 45.3 | 45.3 | 42.5 | |
| 444 | L/min | 302 | 283 | 229 | 194 | 179 | 157 | 137 | 112 | 100 | 89 | 79 | 69 | 55 | 43 |
| m³/h | 18.1 | 17 | 13.7 | 11.6 | 10.7 | 9.4 | 8.2 | 6.7 | 6 | 5.3 | 4.7 | 4.1 | 3.3 | 2.6 | |
| kW | 49.3 | 51.3 | 52 | 49.4 | 52 | 51.5 | 50 | 51 | 51.3 | 51 | 50 | 50.3 | 50.3 | 47.3 | |
| 500 | L/min | 340 | 319 | 258 | 219 | 202 | 177 | 154 | 126 | 113 | 100 | 89 | 78 | 62 | 49 |
| m³/h | 20.4 | 19 | 15.5 | 13 | 12.1 | 10.6 | 9.2 | 7.6 | 6,8 | 6 | 5.3 | 4.7 | 3.7 | 2.9 | |
| kW | 55.6 | 58 | 58.6 | 55.6 | 58.6 | 58 | 56 | 57.4 | 58 | 57.3 | 56.4 | 57 | 57 | 53 | |
注意事项：
1、 当使用环境为24小时连续运转时(如：注水泵、流程泵等)，泵转速应低于250r/min。
2、 当使用环境为间断运转时(如：清洗泵、试压泵等)，泵转速可高一点。
3、 当输送介质液态气体时(如：二氧化碳泵等)，泵转速应不高于110r/min.。
4、 上表所提供的流量为理念流量，实际流量一般为理论流量的92%。
