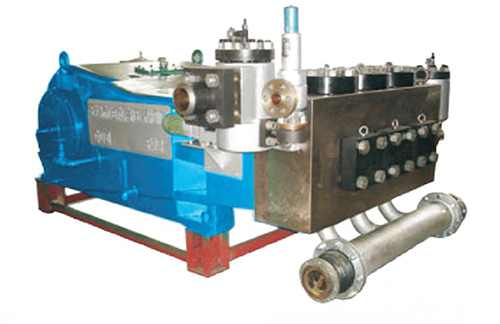

3P200型三柱塞高压泵
3P200型三柱塞高压泵性能参数表 柱塞行程：200mm 泵推力：22000kg
| 柱塞直径(mm) | 160 | 155 | 150 | 140 | 130 | 128 | 114 | 110 | 108 | 102 | 94 | 72 | |
| 工作压力 (MPa) | 6 | 8 | 10 | 13 | 15 | 16 | 20 | 21 | 22 | 25 | 30 | 50 | |
| 转速 (n/min) | 流量(L/min) m³/h 功率 (kW) | ||||||||||||
| 60 | L/min | 723.5 | 678.9 | 635.9 | 553.9 | 477.6 | 463.0 | 367.3 | 341.9 | 329.6 | 294.7 | 249.7 | 146.5 |
| m³/h | 43.3 | 40.7 | 38.1 | 33.2 | 28.6 | 27.7 | 22.0 | 20.5 | 19.7 | 17.6 | 15.0 | 8.8 | |
| kW | 87 | 109 | 127 | 144 | 143 | 148 | 147 | 144 | 145 | 147 | 150 | 146 | |
| 80 | L/min | 96.46 | 905.3 | 847.8 | 738.5 | 636.8 | 617.3 | 489.7 | 455.9 | 439.5 | 392.0 | 332.9 | 195.3 |
| m³/h | 57.8 | 54.2 | 50.8 | 44.2 | 38.1 | 37.0 | 29.3 | 27.3 | 26.3 | 23.5 | 19.9 | 11.7 | |
| kW | 116 | 145 | 170 | 192 | 191 | 198 | 196 | 191 | 193 | 196 | 200 | 195 | |
| 100 | L/min | 1205.8 | 1131.6 | 1059.8 | 923.2 | 796.0 | 771.7 | 612.1 | 569.9 | 549.4 | 490.0 | 416.2 | 244.2 |
| m³/h | 72.2 | 67.8 | 63.5 | 55.3 | 47.7 | 46.2 | 36.7 | 34.1 | 32,9 | 29.3 | 24.9 | 14.6 | |
| kW | 145 | 181 | 212 | 240 | 239 | 247 | 245 | 239 | 242 | 245 | 250 | 244 | |
| 120 | L/min | 1446.9 | 1357.9 | 1271.7 | 1107.8 | 955.2 | 926.0 | 734.5 | 683.9 | 659.2 | 588.0 | 499.4 | 293.0 |
| m³/h | 86.6 | 81.3 | 76.1 | 66.3 | 57.2 | 55.5 | 44.0 | 41.0 | 39.5 | 35.2 | 29.9 | 17.5 | |
| kW | 174 | 217 | 254 | 288 | 287 | 296 | 294 | 287 | 290 | 294 | 300 | 393 | |
| 140 | L/min | 1688.1 | 1584.2 | 1483.7 | 1292.4 | 1114.4 | 1080.4 | 857.0 | 797.9 | 769.1 | 686.0 | 582.6 | 341.8 |
| m³/h | 101.1 | 94.9 | 88.8 | 77.4 | 66.7 | 64.7 | 51.3 | 47.8 | 46.1 | 41.1 | 34.9 | 20.5 | |
| kW | 203 | 253 | 297 | 336 | 334 | 346 | 343 | 335 | 338 | 343 | 350 | 342 | |
| 160 | L/min | 1929.2 | 1810.5 | 1695.6 | 1477.1 | 1273.6 | 1234.7 | 979.4 | 911.9 | 879.0 | 784.0 | 665.9 | 390.7 |
| m³/h | 115.5 | 108.4 | 101.5 | 88.4 | 76.3 | 73.9 | 58.6 | 54.6 | 52.6 | 46.9 | 39.9 | 23.4 | |
| kW | 232 | 290 | 339 | 384 | 382 | 395 | 392 | 383 | 387 | 392 | 400 | 391 | |
| 180 | L/min | 2170.4 | 2036.8 | 1907.6 | 1661.7 | 1432.8 | 1389.0 | 1101.8 | 1025.8 | 988.9 | 882.1 | 749.1 | 439.5 |
| m³/h | 130.0 | 122.0 | 114.2 | 99.5 | 85.8 | 83.2 | 66.0 | 61.4 | 59.2 | 52.8 | 44.9 | 26.3 | |
| kW | 260 | 326 | 382 | 432 | 430 | 444 | 441 | 431 | 435 | 441 | 449 | 439 | |
| 200 | L/min | 2411.5 | 2263.2 | 2119.5 | 1846.3 | 1592.0 | 1543.4 | 1224.2 | 1139.8 | 1098.7 | 980.1 | 832.4 | 488.3 |
| m³/h | 144.4 | 135.5 | 126.9 | 110.6 | 95.3 | 92.4 | 73.3 | 75.1 | 65.8 | 58.7 | 49.8 | 29.2 | |
| kW | 289 | 362 | 424 | 480 | 478 | 494 | 490 | 527 | 483 | 490 | 499 | 488 | |
| 220 | L/min | 2652.7 | 2489.5 | 2331.5 | 2031.0 | 1751.2 | 1697.7 | 1346.6 | 1253.8 | 1208.6 | 1078.1 | 915.6 | 537.2 |
| m³/h | 158.8 | 149.1 | 139.6 | 121.6 | 104.9 | 101.7 | 80.6 | 75.1 | 72.4 | 64.6 | 54.8 | 32.2 | |
| kW | 318 | 398 | 466 | 528 | 525 | 543 | 539 | 527 | 532 | 53.9 | 549 | 537 | |
| 240 | L/min | 2893.8 | 2715.8 | 2543.4 | 2215.6 | 1910.4 | 1852.0 | 1469.1 | 1367.8 | 1318.5 | 1176.1 | 998.8 | 586.0 |
| m³/h | 173.3 | 162.6 | 152.3 | 132.7 | 114.4 | 110.9 | 88.0 | 81.9 | 79.0 | 70.4 | 59.8 | 35.1 | |
| kW | 347 | 435 | 509 | 576 | 573 | 593 | 588 | 574 | 580 | 588 | 599 | 586 | |
注意事项：
1、 当使用环境为24小时连续运转时(如：注水泵、流程泵等)，泵转速应低于250r/min。
2、 当使用环境为间断运转时(如：清洗泵、试压泵等)，泵转速可高一点。
3、 当输送介质液态气体时(如：二氧化碳泵等)，泵转速应不高于110r/min.。
4、 上表所提供的流量为理念流量，实际流量一般为理论流量的92%。
